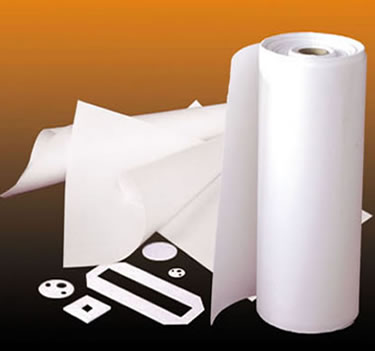

Ceramic Fiber Paper

Ceramic Fiber Paper / Bio-Soluble Paper

Ceramic fiber paper or HP Ceramic fiber paper consists primarily of high purity alumino-silicate fiber and is made through a fiber washing process. This process controls the unwanted content to a very minimal level within the paper. KT ceramic fiber paper has light weight, structural uniformity, and low thermal conductivity, making it a perfect solution for high temperature insulation, chemical corrosion resistance, and thermal shock resistance. Ceramic fiber paper can be used in various refractory and sealing applications and is available in a variety of thicknesses and temperature ratings.

New items - Bio-Soluble Blanket in 1", 1.5", and 2" thick. Bio Soluble fiber is another option for high temperature insulation, compatible with ceramic fiber. It is environmentally friendly and non-itchy to skin. We have bio soluble blanket and bio soluble paper in stock now!

New items - Bio-soluble paper (soluble paper)! Our bio-soluble paper is made with high purity bio-soluble, washed fiber mixed with organic binders. Bio-soluble paper (soluble paper) is a highly flexible, efficient insulating and energy saving material. Bio-soluble paper (soluble paper) is recommended for continuous use at temperatures as high as 1922°F, and max temperature as high as 2192°F. View Technical Datasheet on Bio-soluble Paper.

Call KT Refractories at 1-877-365-2995 to order Ceramic Fiber paper or bio-soluble paper today!

Standard Dimensions for Ceramic Fiber Paper or Bio-Soluble Paper

Thickness Width
(Links included to buy online)
Length
1/40 inch (0.5mm)
(ceramic fiber paper only)
24 inches or 48 inches 400 feet
1/20 inch (1mm)
(ceramic fiber paper only)
24 inches or 48 inches 200 feet
1.5 mm Bio Soluble Paper! 48 inches 500 feet
1/10 inch (2mm) 24 inches or 48 inches 100 feet
1/8 inch (3mm) 24 inches

24 inches High Purity

67 feet
1/8 inch (3mm) New Dimension! 48 inches 133 feet
1/6 inch (4mm) 24 inches or 48 inches 50 feet
1/5 inch (5mm) 24 inches 40 feet
1/5 inch (6mm) New Dimension! 48 inches 200 feet
Custom sizes with specified dimensions are avaliable upon request, minimum order applies

Ceramic Fiber Paper Datasheet:

  • View / download Bio-Soluble Paper Datasheet
  • View / download 2300F, 2600F Ceramic Fiber Paper Datasheet
  • Typical Applications for Bio-Soluble Paper or Ceramic Fiber Paper

  • Thermal or/and electrical insulation
  • Combustion chambers liners
  • Hot top lining
  • Backup lining for metal troughs
  • Front linings
  • Parting plane in refractory linings
  • Refractory backup insulation
  • Aerospace heat shields
  • Kiln car deck covering
  • Appliances insulation
  • Automotive exhaust insulation
  • Expansion joints
  • Asbestos paper replacement
  • Investment cast mold wrap insulation
  • One-time consumable insulating applications
  • Applications where low binder content is required
  • --->

    Features of Ceramic Fiber Paper

  • Superior insulating properties
  • No asbestos
  • Contains minimal bonding agent
  • Great white color, easy to cut, wrap or form a shape
  • Excellent temperature stability
  • Low thermal conductivity
  • Low heat storage
  • Excellent resilience
  • Lightweight
  • Excellent thermal shock resistance
  • Good dielectric strength
  • High fired tensile strength
  • Great flame resistance
  • Features of Bio-Soluble Paper

  • Biologically and environmentally friendly, low bio-persistence
  • Good handling strength, excellent flexibility
  • High temperature stability, great insulating efficiency
  • Low thermal conductivity, low heat storage
  • Resistant to thermal shock
  • Excellent chemical stability, resists attacks from most corrosive agents
  • Low shot content
