Ceramic Fiber Textile

Ceramic Fiber Textile

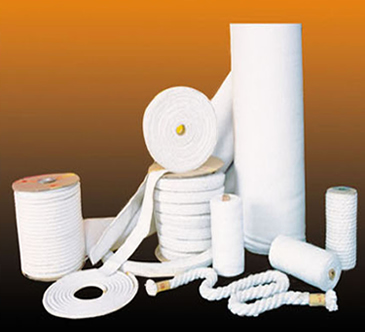

Ceramic fiber textile includes the finished products of Ceramic Fiber Cloth, Ceramic Fiber Rope, Ceramic Fiber Belt, Ceramic Fiber Yarn, etc. Ceramic Fiber Textile is specially processed with ceramic fiber spun bulk, alkali-free glass filament, and high temperature resistant stainless alloy wires. Besides the above products, we can also make high temperature resistant textile according to the customers' demands for specific operating temperature, conditions, and performance.

KT Refractories stocks and distributes Ceramic Rope, ceramic fiber textile, etc. in Houston, TX. Call us today!

Currently In Stock Ceramic Fiber Textiles

2300F Ceramic Fiber Tape
  • 100' X 3" X 1/8"
  • 150' X 2" X 1/8"
  • 300' X 1" X 1/8"
  • 2300F Ceramic Fiber Cloth
    with SS Filament
  • 30' (long) X 36" X 1/8" (thick)
  • 2300F 8# Ceramic Fiber Strip
  • 1" X 6" X 300"
  • 1" X 3" X 300"
  • 2300F Ceramic Fiber 3Ply Braided Rope
    with SS Filament
  • 150' X 1 1/2" (dia)
  • 150' X 1" (dia)
  • 150' X 3/4" (dia)
  • 300' X 1/2" (dia)
  • 500' X 3/8" (dia)
  • 600' X 1/4" (dia)
  • 600' X 1/8" (dia)
  • 2300F Ceramic Fiber Round Braided Rope
    with SS Filament
  • 150' X 1" (dia)
  • 150' X 3/4" (dia)
  • 300' X 1/2" (dia)
  • 600' X 1/4" (dia)
  • 640' X 3/8" (dia)
  • 2300F Ceramic Fiber Square Braided Rope
    with SS Filament
  • 150' X 1" X 1"
  • 150' X 3/4" X 3/4"
  • 300' X 1/2" X 1/2"
  • 600' X 1/4" X 1/4"
  • Ceramic Fiber Cloth Data Sheet

    Description

    GF Cloth

    SS Cloth

    GF Tape

    SS Tape

    Density (kg/m3)

    500

    500

    500

    500

    Classification Temperature (°C)

    1260

    MaximumOperating Temperature (°C)

    500-600

    1000

    500-600

    1000

    Water Content (%)

    ≤1

    Organics Content (%)

    ≤15

    Reinforced Material

    Glass Filament

    Stainless Steel

    Glass Filament

    Stainless Steel

    Ceramic Fiber Rope Data Sheet Chart:

    Description

    GF-R-Rope

    SS-R-Rope

    GF-T-Rope

    SS-T-Rope

    Density (kg/m3)

    500

    500

    500

    500

    Classification Temperature (°C)

    1260

    Maximum Operating Temperature (°C)

    500-600

    1000

    500-600

    1000

    Water Content (%)

    ≤1

    Organics Content (%)

    ≤15

    Reinforced Material

    Glass Filament

    Stainless Steel

    Glass Filament

    Stainless Steel

    Ceramic Fiber Yarn Data Sheet

    Description

    GF-Yarn

    SS-Yarn

    Woolen Rope

    Density (kg/m³)

    500

    500

    330-430

    Classification Temperature (°C)

    1260

    Maximum Operating Temperature (°C)

    500-600

    1000

    500-600

    Water Content (%)

    ≤1

    Organics Content (%)

    ≤15

    Reinforced Material

    Glass Filament

    Stainless Steel

    Glass Filament

    Excellent Features

  • Low thermal conductivity
  • Low heat storage
  • Reduces fume emission around refractory
  • Excellent thermal shock resistance
  • Resistance to gas velocity
  • Easy to install
  • Adheres to most ceramic and metallic surfaces
  • Excellent corrosion resistance
  • Insert to most chemicals
  • Impermeable to molten aluminum, zinc, copper, and lead
  • Asbestos free
  • Typical Applications:

  • Cloth and tape
  • Gasket and wrapping material
  • Cable and wire insulation
  • Welding curtains and blanket
  • Furnace curtains and heat zone separators
  • Fuel line insulation
  • Expansion joints
  • Welding blankets
  • Personnel and equipment protection
  • Fire protection systems
  • Rope
  • High temperature seals and packing in furnaces and heaters cords
  • Door seals for stoves and ovens
  • Thermally insulating pipe wrap
  • Braids
  • Kiln car seals
  • Furnace door seals Jointing
  • High temperature door seals
  • Mould seals
